Inicio /Productos/Cámara de la prueba de espray de sal/IP56 Protected Salt Spray Test Chamber with 108L/270L/600L/1440L Capacity and 1.0~2.0ml/80cm2/h Spray Quantity

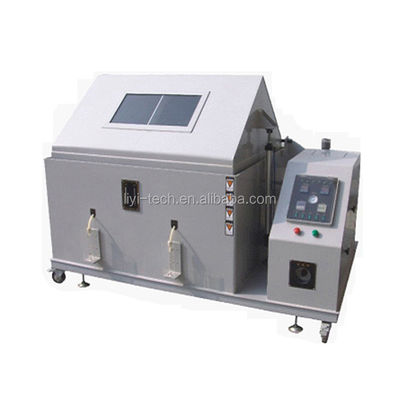

IP56 Protected Salt Spray Test Chamber with 108L/270L/600L/1440L Capacity and 1.0~2.0ml/80cm2/h Spray Quantity

1
MOQ
IP56 Protected Salt Spray Test Chamber with 108L/270L/600L/1440L Capacity and 1.0~2.0ml/80cm2/h Spray Quantity
Caracteristicas Galería Descripción de producto Pida una cita
Caracteristicas
Especificaciones
Exactitud: ± 1 ° C
Fuerza: 180W
Clase de protección: IP56
Voltaje: 220V, 380V, 240V, 110V
Volumen de la cámara de prueba: 108L/270L/600L/1440L o por encargo
Cantidad del espray: 1.0 ~ 2.0 ml/80 cm2/h
Rango de ph: 6,5~7,2, 3,0~3,2
Fuente de alimentación: 220V 50Hz
Temperatura de la cámara de prueba: NSS.ACSS 35°C±1°C/CASS 50°C±1°C
Temperatura del aire saturado: NSS.ACSS 47°C±1°C/CASS 63°C±1°C
Tamaño de la cámara de prueba: 60*45*40 cm, 90*60*50 cm, 120*100*50 cm, 150*100*50 cm, 200*100*50 cm
Capacidad máxima de líquido: 15L, 25L, 40L
Consumo de energía: CA 220 V, 10 A; CA 220 V, 15 A; CA 220 V, 30 A.
Estándar de diseño: GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
Tipo de boquilla de rociado: Principio de Bo Nute
Resaltar:

IP56 Protection Salt Spray Test Chamber

,

108L/270L/600L/1440L Capacity Salt Spray Test Chamber

,

1.0~2.0ml/80cm2/h Spray Quantity Salt Spray Test Chamber
Información básica
Lugar de origen: Guangdong, China
Nombre de la marca: Liyi
Pago y Envío Términos
Descripción de producto
Liyi Salt Fog Corrosion Testing Machine / Salt Spray Ageing Chamber / Salt Mist Resistance Tester
The Liyi Salt Fog Corrosion Testing Machine is designed to evaluate the corrosion resistance of iron metals and their coatings, including electroplating, anodized finishes, conversion coatings, and painted surfaces. This accelerated corrosion testing chamber helps predict the protective finish's suitability by producing controlled corrosive attacks on test samples.
Key Features

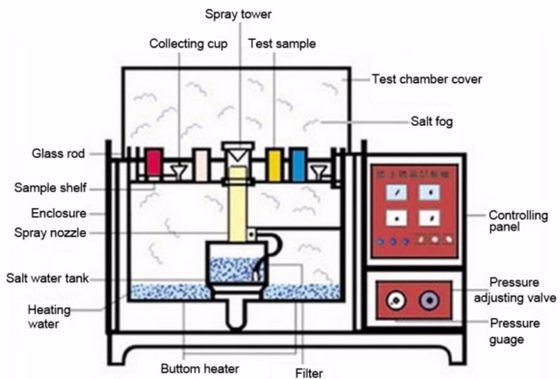

  • Advanced spray nozzle system based on the Bo Nute Principle, converting saline water into fine atomization without crystallization
  • Precision digital microcomputer controller for accurate temperature regulation
  • Comprehensive display showing temperature, humidity, pressure, spray capacity, and test duration
  • Complies with international testing standards for global acceptance
Technical Specifications
Model LY-609-60 LY-609-90 LY-609-120 LY-609-150 LY-609-200
Design Standard GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
Test Chamber Capacity (L) 108L 270L 600L 750L 1000L
Temperature (Test Chamber) NSS/ACSS: 35°C±1°C | CASS: 50°C±1°C
Temperature (Saturated Air Cylinder) NSS/ACSS: 47°C±1°C | CASS: 63°C±1°C
Test Chamber Size (L×W×D cm) 60×45×40 90×60×50 120×100×50 150×100×50 200×100×50
Max Capacity of Test Liquid (L) 15 25 40 40 40
Power AC220V,10A AC220V,15A AC220V,30A AC220V,30A AC220V,30A

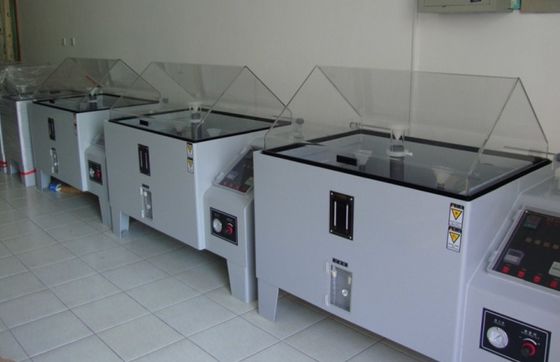

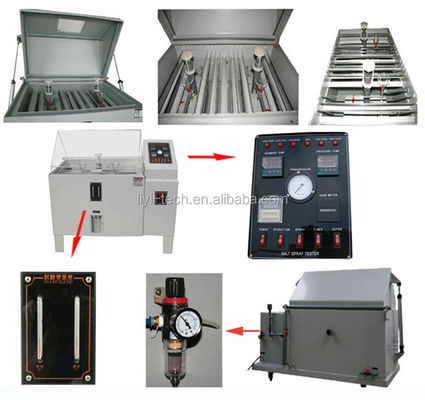

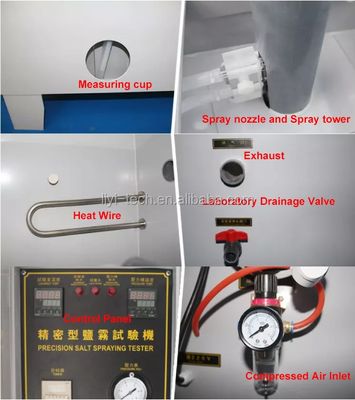

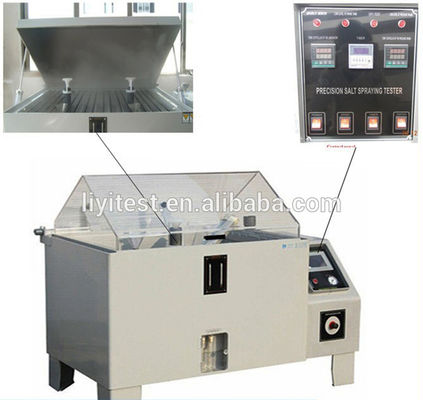

Product Images
IP56 Protected Salt Spray Test Chamber with 108L/270L/600L/1440L Capacity and 1.0~2.0ml/80cm2/h Spray Quantity 0 IP56 Protected Salt Spray Test Chamber with 108L/270L/600L/1440L Capacity and 1.0~2.0ml/80cm2/h Spray Quantity 1 IP56 Protected Salt Spray Test Chamber with 108L/270L/600L/1440L Capacity and 1.0~2.0ml/80cm2/h Spray Quantity 2
Company Profile

Dongguan Liyi Environmental Technology Co., Ltd is a high-tech production-oriented enterprise specializing in developing, manufacturing, and marketing various environmental testing equipment. With advanced technology, experienced personnel, and a comprehensive quality management system, we serve customers in over 150 countries.

Our product range includes simulated environmental testers, plastic and rubber testers, and other material testing equipment. Based in Dongguan, China's manufacturing hub, we maintain a satellite office in Kunshan to better serve our Eastern China customers.

IP56 Protected Salt Spray Test Chamber with 108L/270L/600L/1440L Capacity and 1.0~2.0ml/80cm2/h Spray Quantity 3
Frequently Asked Questions
Are you the manufacturer? What about after-sales service and warranty?

Yes, we are a professional manufacturer of environmental testing equipment. All machines come with a 12-month warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty and offer technical support via email or video chat, with solutions typically provided within 24-48 hours.

What's the delivery time?

Standard machines are typically available from stock. For non-stock items, delivery time is 15-20 working days after deposit receipt. We can expedite production for urgent orders.

Do you accept customization and OEM services?

Yes, we offer both standard and customized machines according to customer requirements, including OEM/ODM services with your logo on the equipment.

How do I install and use the machine?

Most machines are shipped fully assembled - just connect the power cable to begin operation. We provide English operation videos via email, and can assist with on-site installation if required.

IP56 Protected Salt Spray Test Chamber with 108L/270L/600L/1440L Capacity and 1.0~2.0ml/80cm2/h Spray Quantity 4
