Caracteristicas Galería Descripción de producto Pida una cita

Caracteristicas

Especificaciones

Exactitud: NSS.ACSS 35°C±1°C/CASS 50°C±1°C

Fuerza: 2kw

Clase de protección: IP56

Voltaje: 220 V, 380 V, 240 V, 110 V

Temperatura de la cámara de prueba: NSS.ACSS 35°C±1°C/CASS 50°C±1°C

Temperatura del aire saturado: NSS.ACSS 47°C±1°C/CASS 63°C±1°C

Capacidad de la cámara de prueba: 108L~1000L

Mostrar: Pantalla táctil de la exhibición del LCD color

Tamaño de la cámara de prueba: 60*45*40 cm, 90*60*50 cm, 120*100*50 cm, 200*120*60 cm

Capacidad máxima de líquido: 15L, 25L, 40L, 40L

Volumen exterior: 107*60*118 cm, 141*88*128 cm, 190*130*140 cm, 270*150*150 cm

Fuente de alimentación: CA 220 V, 10 A, CA 220 V, 15 A, CA 220 V, 30 A

Modelo: LY-609-60, LY-609-90, LY-609-120, LY-609-200

Estándar de diseño: GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371

Capacidad de la cámara de prueba (L): 108L, 270L, 600L, 1440L

Resaltar:

108L~1000L Capacity Salt Spray Test Chamber

IP56 Protection Class Salt Spray Test Chamber

ASTM-B117 Corrosion Resistance Salt Spray Test Chamber

Información básica

Lugar de origen: Guangdong, China

Nombre de la marca: LIYI

Pago y Envío Términos

Galería

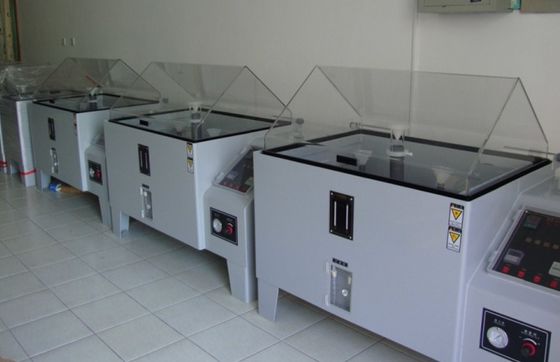

Liyi ASTM-B117 Corrosion Resistance Salt Spray Test Chamber with 108L~1000L Capacity and IP56 Protection Class

Descripción de producto

Liyi ASTM-B117 Corrosion Resistance Machine Spray Solar Panel Salt Mist Aging Testing Chamber

The Liyi salt spray test machine determines the corrosion resistance of iron metals or their inorganic/organic coatings, including electroplating, anodizing, conversion coatings, and paint finishes.

This accelerated corrosion testing chamber evaluates protective finishes by subjecting coated samples to corrosive conditions. The test duration varies based on the coating's corrosion resistance, with more durable coatings requiring longer testing periods before showing signs of oxidation.

Key Features

Evaluates corrosion resistance of metal coatings and finishes
Accelerated testing method for quality assessment
Multiple standard compliance (ASTM B117, GB/T, JIS, etc.)
Precise temperature control for different test types
Available in multiple chamber sizes for various testing needs

Technical Specifications

Model	LY-609-60	LY-609-90	LY-609-120	LY-609-200
Design Standard	GB/T 10587-2006, GB/T 10125-1997, JIS-D0201, H8502, H8610, K5400, Z2371
Test Chamber Capacity (L)	108L	270L	600L	1440L
Temperature (Test Chamber)	NSS/ACSS: 35°C±1°C \| CASS: 50°C±1°C
Temperature (Saturated Air Cylinder)	NSS/ACSS: 47°C±1°C \| CASS: 63°C±1°C
Test Chamber Size (L×W×D cm)	60×45×40	90×60×50	120×100×50	200×120×60
Max Capacity of Test Liquid (L)	15	25	40	40
Outside Volume (L×W×D cm)	107×60×118	141×88×128	190×130×140	270×150×150
Power	AC220V,10A	AC220V,15A	AC220V,30A	AC220V,30A

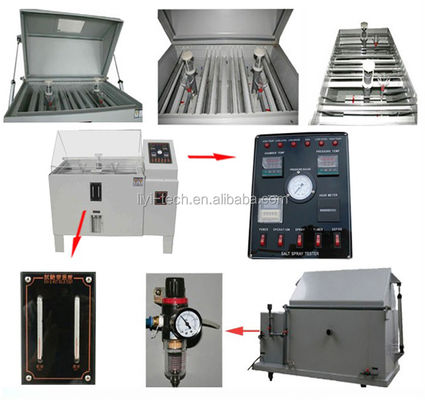

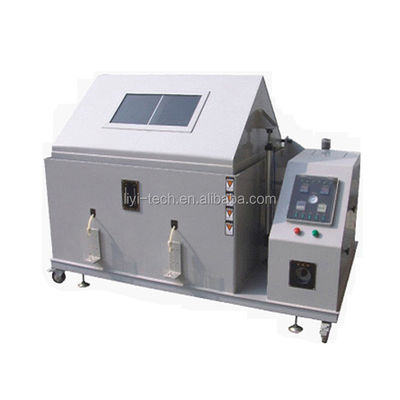

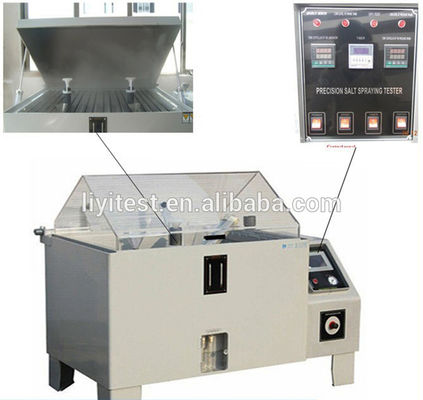

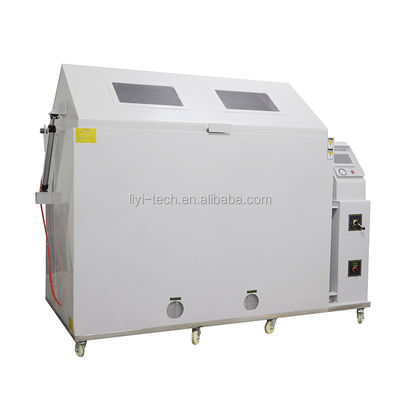

Product Images

Company Profile

Dongguan Liyi Environmental Technology Co., Ltd is a high-tech manufacturing enterprise specializing in environmental testing equipment. With advanced technology, experienced personnel, and comprehensive quality management, we serve customers in over 150 countries.

Our product range includes environmental test chambers, material testing equipment, and customized solutions. Based in Dongguan, China's manufacturing hub, we maintain a satellite office in Kunshan to better serve our Eastern China customers.

Frequently Asked Questions

1. Are you the manufacturer? What about after-sales service and warranty?

Yes, we are a professional manufacturer of testing equipment. All machines come with a 12-month warranty (extended to 14 months for overseas shipments). We provide free maintenance during warranty and offer technical support via email or video call, with solutions typically provided within 24-48 hours.

2. What's the delivery time?

Standard machines are typically available from stock. For non-stock items, delivery takes 15-20 working days after deposit. We can expedite production for urgent orders.

3. Do you offer customization and OEM services?

Yes, we provide both standard and customized machines according to customer requirements, including OEM services with your logo on the equipment.

4. How do I install and use the machine?

Most machines are shipped fully assembled - just connect power to begin testing. We provide English operation videos and can assist with on-site installation when necessary.
